Nonflammable,uncorrosive and beautiful handy heat insulating jacket
Utility model application No. 59-032570

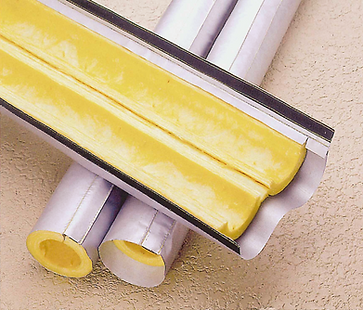

GLASSCOAT COVER is a heat insulating jacket being mountable and dismountable easily. Even if it is dismounted once by shifting or reconstructing pip-ing, GLASSCOAT COVER is reusable. It is the advanved type of heat insulating jacket. The moun-ting and dismounting of the unit is perperformed by a single procedure using special adhesive tape.
It contributes to the saving of traveling expenses on the occasion of plant construction at remote places.
The silicone-coating surface is chemical , water and heat resistant.
The cross section after mounting is color-adjusted using silver spray and capped with a stainless inner clip washer cover.
For the outdoor use, silicone caulking material is used.
Performance
Material
(heat insulator) glasswool insulating jacket
JIS-A9505 safety working temperature 200℃
λ＝0.027+0.00014θ
(sheath material) silicone coating glasscloth
Safety working temperature 180℃to-60℃
tensile strength 76㎏　thickness0.223mm
(sewing thread) aramide fiber
Heat resistance 204℃ to -251℃
Flammability : selfextinguishing
a practical new No.1677340

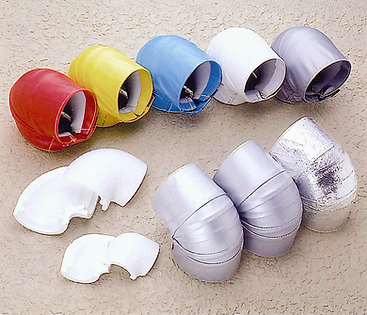

For glasscoat cover use, elbow cover
L-CAP is exclusively used for GLASSCOAT COVER
as an elbow cover. The mounting procedure is simple, i. e. an elbow part of the piping is wrapped in the insulator by using wire, up to the uninsulated thick-ness of the straight pipe, then covered L-CAP fixing with adhesive tape (If it is dismounted, it's reusable at another place.)

        Thickness

Size                     20T   25T   30T   40T   50T



15A     1/2B         #5    #6      -       -       -



 20       3/4             5       7    #8   #14     -



25        1               6       8     13     15     -



32      1 1/4           7      13    14     17     -



40      1 1/2           8      14    15     17     -



50        2             13      15    17     20     -



65      2 1/2         15      17    20     22     -



80        3             20      20    22     24     #25



100       4              -       22     24     25     26



125       5              -       25     26     26     28



150       6              -       26     28     28     -



200       8              -        -       -        -      30
